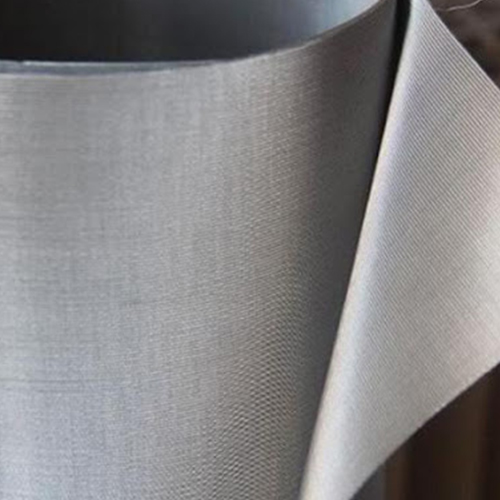

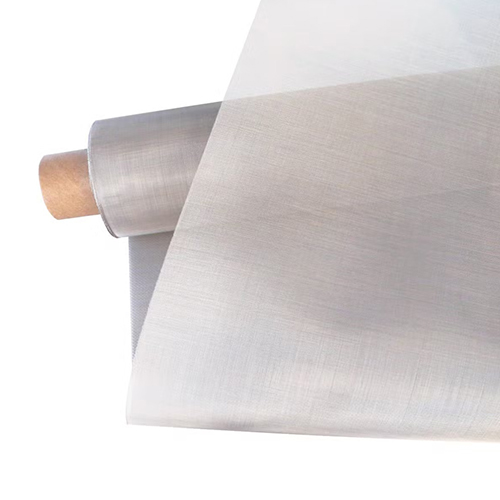

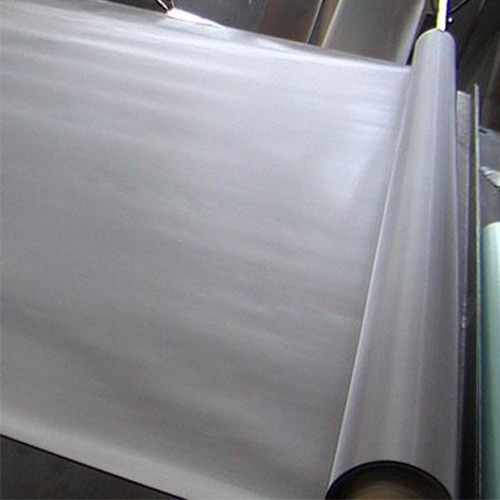

Square Mesh Wire Cloth
Our in-house brand, trusted since the 1960s for supreme quality and reliability in various industries that require premium quality metal meshes.
With over 25 years of experience in manufacturing industrial wirecloth, PARSH NATH MANUFACTURERS PVT LTD has supplied woven wire to almost every industry and application. Square Mesh Wire Cloth is our in-house production, marketed under the trusted SNAKE® Brand (comes with Test Certificate).
Wirecloth offers wide-ranging characteristics depending on wire thickness relative to aperture size and weave type. It can range from fine and flexible to rigid like steel plate.
We offer specifications from 2600 micron aperture down to 1 micron nominal aperture. Manufactured in Mild Steel (M.S.), Galvanized Iron (G.I.), Stainless Steel 304, 316 (S.S.), Aluminium (AL.), Brass, Copper, and other metals.
Applications
Filtration & Separation
Reinforcement
Ventilation Screening
Radio & Microwave Screening
Screen Printing
Transportation Belts
Speaker Grills
Plastic Extrusion
Optical Lens Manufacture
Catalysts & Metal Recovery
Flame & Heat Diffusion
Vacuum Forming
Spark Protection
Security Screens
Battery Manufacture
And Many More…
Technical Specifications
Opening
:
1 Micron to 2600 Micron
Wire Dia
:
50 SWG (0.025 mm) to 24 SWG (0.588 mm)
Width
:
Upto 5 Mtr (16 Ft 4 Inches)
Weaving
:
Plain Weave, Dutch Plain Weave
Patterns
:
Twill Weave, Dutch Twill Weave
Material
:
Stainless Steel (Grade – 410, 304, 202 etc), Spring Steel, High Carbon Steel, Galvanized Iron (G.I.), Mild Steel (M.S.), Brass, Copper etc.
Quality
:
All S.S. Material comes with Test Report
| AISI 304 Quality Chemical Components | |
|---|---|
| Element | % Content |
| C (Carbon) | 0.08 |
| Mn (Manganese) | 2.00 |
| P (Phosphorus) | 0.045 |
| S (Sulphur) | 0.03 |
| Si (Silicon) | 1.00 |
| Ni (Nickel) | 8.00 |
| Cr (Chromium) | 18.00 |
SS Grade Specifications
| AISI Grade | Stainless Steel Wire Chemical Composition (%) | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00~10.50 | 18.00~20.00 | — |
| 304H | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00~10.50 | 18.00~20.00 | — |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 9.00~13.50 | 18.00~20.00 | — |
| 316 | 0.045 | 1 | 2 | 0.045 | 0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | 0.12 | 0.75 | 1 | 0.04 | 0.03 | 0.6 | 16.00~18.00 | — |
| 430A | 0.06 | 0.5 | 0.5 | 0.03 | 0.5 | 0.25 | 14.00~17.00 | — |
Custom specifications and weaves available on request.
All Stainless Steel materials supplied with Test Certificate.
